前言

之前在做技术积累的时候基于Layim+t-io做了一个即时通讯，由于某种原因，就搁置了，最近抽空将其完善，此系列记录开发过程。

关于t-io

在开始之前建议对于t-io不熟悉的可以去官网看看t-io 网络上对于t-io的解析的文章很多，可以看看,t-io的源码地址

开发环境

　　操作系统：Windows 10 X64
　　开发工具：IntelliJ IDEA ULTIMATE 2018.3
　　JDK:1.8.0_131
　　t-io：3.5.7.v20191115-RELEASE
　　数据库：MySQL5.7

服务端搭建

在服务搭建之前建议先去网络上对以下几个类进行了解

IWsMsgHandler(websocket事件监听器)
ServerAioHandler(消息的处理)
WsServerAioListener(事件监听)
WsServerConfig(服务端的配置)
ServerTioConfig(当前的上下文)

TioServer(Tio服务)

本篇文章不会对于t-io进行过多的分析，尽量减少文字的描述，大部分使用代码进行呈现,需要详细的了解t-io的话可以去它的官网进行了解

详细代码

引入t-io的包

<dependency>
    <groupId>org.t-io</groupId>
    <artifactId>tio-core</artifactId>
    <version>3.5.7.v20191115-RELEASE</version>
</dependency>

<dependency>
    <groupId>org.t-io</groupId>
    <artifactId>tio-websocket-server</artifactId>
    <version>3.5.7.v20191115-RELEASE</version>
</dependency>

ServerSocketStarter.java

/**
 * 服务端启动
 * @author lm
 */
@Configuration
public class ServerSocketStarter {
    @Autowired
    private WebSocketProperties webSocketProperties;
    @Bean
    public WsStarter serverStarter() throws Exception{
        WesServerConfig wesServerConfig = new WesServerConfig(webSocketProperties.getPort());
        wesServerConfig.setBindIp(webSocketProperties.getIp());
        WsStarter wsStarter=new WsStarter(wesServerConfig,new WesMsgHandler());
        //启动程序
        wsStarter.start();

        return wsStarter;
    }
}

WesServerConfig.java

继承org.tio.websocket.server.WsServerConfig

public class WesServerConfig extends WsServerConfig {


    public WesServerConfig(Integer bindPort, boolean useSession) {
        super(bindPort, useSession);
    }

    public WesServerConfig(Integer bindPort) {
        super(bindPort);
    }
}

WsStarter.java

源码地址:org.tio.websocket.server.WsServerStarter

/**
 * 改造原来的启动配置
 * 原来的位置:
 */

public class WsStarter {
    private static Logger log = LoggerFactory.getLogger(WsServerStarter.class);
    //服务端 ip和端口的配置
    private WesServerConfig wesServerConfig;
    //定义handler，所有的请求数据全部都由这个handler来处理,decode/encode/handler等等
    private WesMsgHandler wesMsgHandler;
    //服务端的消息处理 所有的请求数据全部都由这个handler来处理,decode/encode/handler等等
    private WesServerAioHandler wesServerAioHandler;
    //可以在连接上、接收到消息、发送消息后等等回调其内部方法
    private WesServerAioListener wesServerAioListener;
    //服务端上下文初始化
    private ServerTioConfig serverTioConfig;
    private TioServer tioServer;

    public TioServer getTioServer() {
        return this.tioServer;
    }

    public WesServerConfig getWesServerConfig() {
        return this.wesServerConfig;
    }

    public WesMsgHandler getWesMsgHandler() {
        return wesMsgHandler;
    }

    public void setWesMsgHandler(WesMsgHandler wesMsgHandler) {
        this.wesMsgHandler = wesMsgHandler;
    }

    public WesServerAioHandler getWesServerAioHandler() {
        return this.wesServerAioHandler;
    }

    public WesServerAioListener getWesServerAioListener() {
        return this.wesServerAioListener;
    }

    public ServerTioConfig getServerTioConfig() {
        return this.serverTioConfig;
    }



    public WsStarter(WesServerConfig wesServerConfig, WesMsgHandler wesMsgHandler) throws IOException {
        this(wesServerConfig, wesMsgHandler, (SynThreadPoolExecutor)null, (ThreadPoolExecutor)null);
    }

    public WsStarter(WesServerConfig wesServerConfig, WesMsgHandler wesMsgHandler, SynThreadPoolExecutor tioExecutor, ThreadPoolExecutor groupExecutor) throws IOException {
        this(wesServerConfig, wesMsgHandler, new WsTioUuid(), tioExecutor, groupExecutor);
    }

    public WsStarter(WesServerConfig wesServerConfig, WesMsgHandler wesMsgHandler, TioUuid tioUuid, SynThreadPoolExecutor tioExecutor, ThreadPoolExecutor groupExecutor) throws IOException {
        this.wesServerConfig = null;
        this.wesMsgHandler = null;
        this.wesServerAioHandler = null;
        this.wesServerAioListener = null;
        this.serverTioConfig = null;
        this.tioServer = null;
        if (tioExecutor == null) {
            tioExecutor = Threads.getTioExecutor();
        }

        if (groupExecutor == null) {
            groupExecutor = Threads.getGroupExecutor();
        }

        this.wesServerConfig = wesServerConfig;
        this.wesMsgHandler = wesMsgHandler;
        wesServerAioHandler = new WesServerAioHandler(wesServerConfig, wesMsgHandler);
        wesServerAioListener = new WesServerAioListener();
        serverTioConfig = new ServerTioConfig("Tio Websocket Server", this.wesServerAioHandler, this.wesServerAioListener, tioExecutor, groupExecutor);
        serverTioConfig.setHeartbeatTimeout(0L);
        serverTioConfig.setTioUuid(tioUuid);
        serverTioConfig.setReadBufferSize(30720);
        tioServer = new TioServer(this.serverTioConfig);
        WebMsgHandler.init();
    }

    /**
     *
     * @throws IOException
     */
    public void start() throws IOException {
        tioServer.start(this.wesServerConfig.getBindIp(), this.wesServerConfig.getBindPort());
    }

}

WesMsgHandler.java

实现:org.tio.websocket.server.handler.IWsMsgHandler


/**
 *  websocket事件的监听
 */
public class WesMsgHandler implements IWsMsgHandler {
    private MineService mineService;

    private FriendOrGroupService friendOrGroupService;

    private static final Logger logger = LoggerFactory.getLogger(WesMsgHandler.class);
    /**
     * 握手时走这个方法，业务可以在这里获取cookie，request参数等
     */
    @Override
    public HttpResponse handshake(HttpRequest httpRequest, HttpResponse httpResponse, ChannelContext channelContext) throws Exception {
        return handshakeUser(httpRequest,httpResponse,channelContext);
    }

    @Override
    public void onAfterHandshaked(HttpRequest httpRequest, HttpResponse httpResponse, ChannelContext channelContext) throws Exception {

    }

    @Override
    public Object onBytes(WsRequest wsRequest, byte[] bytes, ChannelContext channelContext) throws Exception {
        return "暂不支持字节消息解析";
    }

    /**
     * 离线or关闭
     * @param wsRequest
     * @param bytes
     * @param channelContext
     * @return
     * @throws Exception
     */
    @Override
    public Object onClose(WsRequest wsRequest, byte[] bytes, ChannelContext channelContext) throws Exception {

        Tio.remove(channelContext,"onClose");
        return null;
    }

    @Override
    public Object onText(WsRequest wsRequest, String s, ChannelContext channelContext) throws Exception {
        return null;
    }
    private MineService getMineService(){
        mineService= SpringContextUtil.getBean(MineService.class);

        return mineService;

    }

    private FriendOrGroupService getFriendOrGroupService(){
        friendOrGroupService= SpringContextUtil.getBean(FriendOrGroupService.class);

        return friendOrGroupService;

    }

    /**
     * 握手成功后的处理
     * 将用户信息绑定到当前的上下文channelContext中
     * */
    private HttpResponse handshakeUser( HttpRequest httpRequest,HttpResponse httpResponse, ChannelContext channelContext) throws  Exception {
        MineService mineService = getMineService();
        FriendOrGroupService friendOrGroupService = getFriendOrGroupService();
        //获得缓存
        String userid=UserUtils.getImid();
        //根据登录人的id获取当前登录人的信息
        Mine mine= mineService.get(userid);
        //将当前登录人的信息保存到layim需要的格式里面
        String userId = mine.getId();
        channelContext.setAttribute(userId, mine);
        //绑定用户ID
        Tio.bindUser(channelContext, userId);
        //清除缓存
        UserUtils.removeImid();

        return httpResponse;
    }


    }

WesServerAioHandler.java

实现:org.tio.core.intf.AioHandler.ServerAioHandler

/**
 *  消息处理
 */
public class WesServerAioHandler implements ServerAioHandler {

    private static Logger log = LoggerFactory.getLogger(WsServerAioHandler.class);

    private WesServerConfig wesServerConfig;
    private WesMsgHandler wesMsgHandler;

    public WesServerAioHandler(WesServerConfig wesServerConfig, WesMsgHandler wesMsgHandler) {
        this.wesServerConfig = wesServerConfig;
        this.wesMsgHandler = wesMsgHandler;
    }
    /***
     *服务端消息解码
     * 将消息的返回值进行封装
     * @param buffer
     * @param limit
     * @param position
     * @param readableLength
     * @param channelContext
     * @return
     * @throws AioDecodeException
     */
    @Override
    public WsRequest decode(ByteBuffer buffer, int limit, int position, int readableLength, ChannelContext channelContext) throws AioDecodeException {
        WsSessionContext wsSessionContext = (WsSessionContext)channelContext.getAttribute();
        if (!wsSessionContext.isHandshaked()) {
            HttpRequest request = HttpRequestDecoder.decode(buffer, limit, position, readableLength, channelContext, wesServerConfig);
            if (request == null) {
                return null;
            } else {
                HttpResponse httpResponse = updateWebSocketProtocol(request, channelContext);
                if (httpResponse == null) {
                    throw new AioDecodeException("http协议升级到websocket协议失败");
                } else {
                    wsSessionContext.setHandshakeRequest(request);
                    wsSessionContext.setHandshakeResponse(httpResponse);
                    WsRequest wsRequestPacket = new WsRequest();
                    wsRequestPacket.setHandShake(true);
                    log.info("握手成功");
                    return wsRequestPacket;
                }
            }
        } else {
            WsRequest websocketPacket = WsServerDecoder.decode(buffer, channelContext);
            return websocketPacket;
        }
    }


    /**
     * 编码：把业务消息包编码为可以发送的ByteBuffer
     * 总的消息结构：消息头 + 消息体
     * 消息头结构：    4个字节，存储消息体的长度
     * 消息体结构：   对象的json串的byte[]
     */
    @Override
    public ByteBuffer encode(Packet packet, TioConfig tioConfig, ChannelContext channelContext) {
        WsResponse wsResponse = (WsResponse)packet;
        if (wsResponse.isHandShake()) {
            WsSessionContext imSessionContext = (WsSessionContext)channelContext.getAttribute();
            HttpResponse handshakeResponse = imSessionContext.getHandshakeResponse();

            try {
                return HttpResponseEncoder.encode(handshakeResponse, tioConfig, channelContext);
            } catch (UnsupportedEncodingException var8) {
                log.error(var8.toString(), var8);
                return null;
            }
        } else {
            ByteBuffer byteBuffer = WsServerEncoder.encode(wsResponse, tioConfig, channelContext);
            return byteBuffer;
        }
    }

    public WsServerConfig getHttpConfig() {
        return wesServerConfig;
    }

    /**
     * 进行消息的处理以及转发
     * @param websocketPacket
     * @param bytes
     * @param opcode
     * @param channelContext
     * @return
     * @throws Exception
     */
    private WsResponse handler(WsRequest websocketPacket, byte[] bytes, Opcode opcode, ChannelContext channelContext) throws Exception {
        WsResponse wsResponse = null;
        if (opcode == Opcode.TEXT) {
            if (bytes != null && bytes.length != 0) {

                //接收到的消息包
                String text = new String(bytes, wesServerConfig.getCharset());
                JSONObject jsonObject = JSON.parseObject(text);
                //获得消息类型
                MsgType property = Json.toBean(text, MsgType.class);
                //解析数据消息
                log.info("消息类型",property.getMsgtype());
                MsgHandler msgHandler = WebMsgHandler.getMsg(property.getMsgtype());
                boolean unknown = msgHandler == null;
                if(!unknown) {
                    //根据消息类型进行消息的处理
                    msgHandler.handler(websocketPacket, channelContext);
                }
                Object retObj = wesMsgHandler.onText(websocketPacket, text, channelContext);
                String methodName = "onText";
                wsResponse = this.processRetObj(retObj, methodName, channelContext);
                return wsResponse;
            } else {
                Tio.remove(channelContext, "错误的websocket包，body为空");
                return null;
            }
        } else {
            Object retObj;
            String methodName;
            if (opcode == Opcode.BINARY) {
                if (bytes != null && bytes.length != 0) {
                    retObj = wesMsgHandler.onBytes(websocketPacket, bytes, channelContext);
                    methodName = "onBytes";
                    wsResponse = this.processRetObj(retObj, methodName, channelContext);
                    return wsResponse;
                } else {
                    Tio.remove(channelContext, "错误的websocket包，body为空");
                    return null;
                }
            } else if (opcode != Opcode.PING && opcode != Opcode.PONG) {
                if (opcode == Opcode.CLOSE) {
                    String text = ByteUtil.toText(bytes);
                    retObj = wesMsgHandler.onClose(websocketPacket, bytes, channelContext);
                    methodName = "onClose";
                    wsResponse = this.processRetObj(retObj, methodName, channelContext);
                    return wsResponse;
                } else {
                    Tio.remove(channelContext, "错误的websocket包，错误的Opcode");
                    return null;
                }
            } else {
                log.info("收到" + opcode);
                return null;
            }
        }
    }

    @Override
    public void handler(Packet packet, ChannelContext channelContext) throws Exception {
        WsRequest wsRequest = (WsRequest)packet;
        if (wsRequest.isHandShake()) {
            WsSessionContext wsSessionContext = (WsSessionContext)channelContext.getAttribute();
            HttpRequest request = wsSessionContext.getHandshakeRequest();
            HttpResponse httpResponse = wsSessionContext.getHandshakeResponse();
            HttpResponse r = wesMsgHandler.handshake(request, httpResponse, channelContext);
            if (r == null) {
                Tio.remove(channelContext, "业务层不同意握手");
            } else {
                wsSessionContext.setHandshakeResponse(r);
                WsResponse wsResponse = new WsResponse();
                wsResponse.setHandShake(true);
                Tio.send(channelContext, wsResponse);
                wsSessionContext.setHandshaked(true);
                wesMsgHandler.onAfterHandshaked(request, httpResponse, channelContext);
            }
        } else {
            log.info("进行消息的处理");
            WsResponse wsResponse = this.handler(wsRequest, wsRequest.getBody(), wsRequest.getWsOpcode(), channelContext);
            if (wsResponse != null) {
                Tio.send(channelContext, wsResponse);
            }

        }
    }

    private WsResponse processRetObj(Object obj, String methodName, ChannelContext channelContext) throws Exception {
        WsResponse wsResponse = null;
        if (obj == null) {
            return null;
        } else if (obj instanceof String) {
            String str = (String)obj;
            wsResponse = WsResponse.fromText(str, wesServerConfig.getCharset());
            return wsResponse;
        } else if (obj instanceof byte[]) {
            wsResponse = WsResponse.fromBytes((byte[])((byte[])obj));
            return wsResponse;
        } else if (obj instanceof WsResponse) {
            return (WsResponse)obj;
        } else if (obj instanceof ByteBuffer) {
            byte[] bs = ((ByteBuffer)obj).array();
            wsResponse = WsResponse.fromBytes(bs);
            return wsResponse;
        } else {
            log.error("{} {}.{}()方法，只允许返回byte[]、ByteBuffer、WsResponse或null，但是程序返回了{}", new Object[]{channelContext, this.getClass().getName(), methodName, obj.getClass().getName()});
            return null;
        }
    }

    public void setHttpConfig(WesServerConfig httpConfig) {
        wesServerConfig = httpConfig;
    }

    public static HttpResponse updateWebSocketProtocol(HttpRequest request, ChannelContext channelContext) {
        Map<String, String> headers = request.getHeaders();
        String Sec_WebSocket_Key = (String)headers.get("sec-websocket-key");
        if (StrUtil.isNotBlank(Sec_WebSocket_Key)) {
            String Sec_WebSocket_Key_Magic = Sec_WebSocket_Key + "258EAFA5-E914-47DA-95CA-C5AB0DC85B11";
            byte[] key_array = SHA1Util.SHA1(Sec_WebSocket_Key_Magic);
            String acceptKey = BASE64Util.byteArrayToBase64(key_array);
            HttpResponse httpResponse = new HttpResponse(request);
            httpResponse.setStatus(HttpResponseStatus.C101);
            Map<HeaderName, HeaderValue> respHeaders = new HashMap();
            respHeaders.put(HeaderName.Connection, HeaderValue.Connection.Upgrade);
            respHeaders.put(HeaderName.Upgrade, HeaderValue.Upgrade.WebSocket);
            respHeaders.put(HeaderName.Sec_WebSocket_Accept, HeaderValue.from(acceptKey));
            httpResponse.addHeaders(respHeaders);
            return httpResponse;
        } else {
            return null;
        }
    }
}

WesServerAioListener.java

继承:org.tio.websocket.server.WsServerAioListener

/**
  * 事件监听
  */
 public class WesServerAioListener extends WsServerAioListener {
     private static Logger log = LoggerFactory.getLogger(WesServerAioListener.class);


     @Override
     public void onAfterConnected(ChannelContext channelContext, boolean isConnected, boolean isReconnect) throws Exception {
         super.onAfterConnected(channelContext, isConnected, isReconnect);
         if (log.isInfoEnabled()) {
             log.info("onAfterConnected\r\n{}", channelContext);
         }

     }

     @Override
     public void onAfterSent(ChannelContext channelContext, Packet packet, boolean isSentSuccess) throws Exception {
         super.onAfterSent(channelContext, packet, isSentSuccess);
         if (log.isInfoEnabled()) {
             log.info("onAfterSent\r\n{}\r\n{}", packet.logstr(), channelContext);
         }
     }

     @Override
     public void onBeforeClose(ChannelContext channelContext, Throwable throwable, String remark, boolean isRemove) throws Exception {
         super.onBeforeClose(channelContext, throwable, remark, isRemove);
         if (log.isInfoEnabled()) {
             log.info("onBeforeClose\r\n{}", channelContext);
         }

         WsSessionContext wsSessionContext = (WsSessionContext) channelContext.get();

         if (wsSessionContext != null && wsSessionContext.isHandshaked()) {

             int count = Tio.getAll(channelContext.tioConfig).getObj().size();

             String msg = channelContext.getClientNode().toString() + " 离开了，现在共有【" + count + "】人在线";
         }
     }

     @Override
     public void onAfterDecoded(ChannelContext channelContext, Packet packet, int packetSize) throws Exception {
         super.onAfterDecoded(channelContext, packet, packetSize);
         if (log.isInfoEnabled()) {
             log.info("onAfterDecoded\r\n{}\r\n{}", packet.logstr(), channelContext);
         }
     }

     @Override
     public void onAfterReceivedBytes(ChannelContext channelContext, int receivedBytes) throws Exception {
         super.onAfterReceivedBytes(channelContext, receivedBytes);
         if (log.isInfoEnabled()) {
             log.info("onAfterReceivedBytes\r\n{}", channelContext);
         }
     }

     @Override
     public void onAfterHandled(ChannelContext channelContext, Packet packet, long cost) throws Exception {
         super.onAfterHandled(channelContext, packet, cost);
         if (log.isInfoEnabled()) {
             log.info("onAfterHandled\r\n{}\r\n{}", packet.logstr(), channelContext);
         }
     }
 }

WebSocketProperties.java(端口和网址的配置)


/**
 * @author 端口和网址的配置
 */

@Component
@ConfigurationProperties(prefix = "websocket")
public class WebSocketProperties {
    /**
     * 端口
     */
    private int port;
    /**
     * ip地址
     */
    private String ip;



    public int getPort() {
        return port;
    }

    public void setPort(int port) {
        this.port = port;
    }

    public String getIp() {
        return ip;
    }

    public void setIp(String ip) {
        this.ip = ip;
    }


}

说明

WebSocketProperties类的配置一些配置是在application.yml文件中定义的

1
2
3

websocket:
  ip: 192.168.xx.xxx #服务器的IP地址
  port: 8089

结束

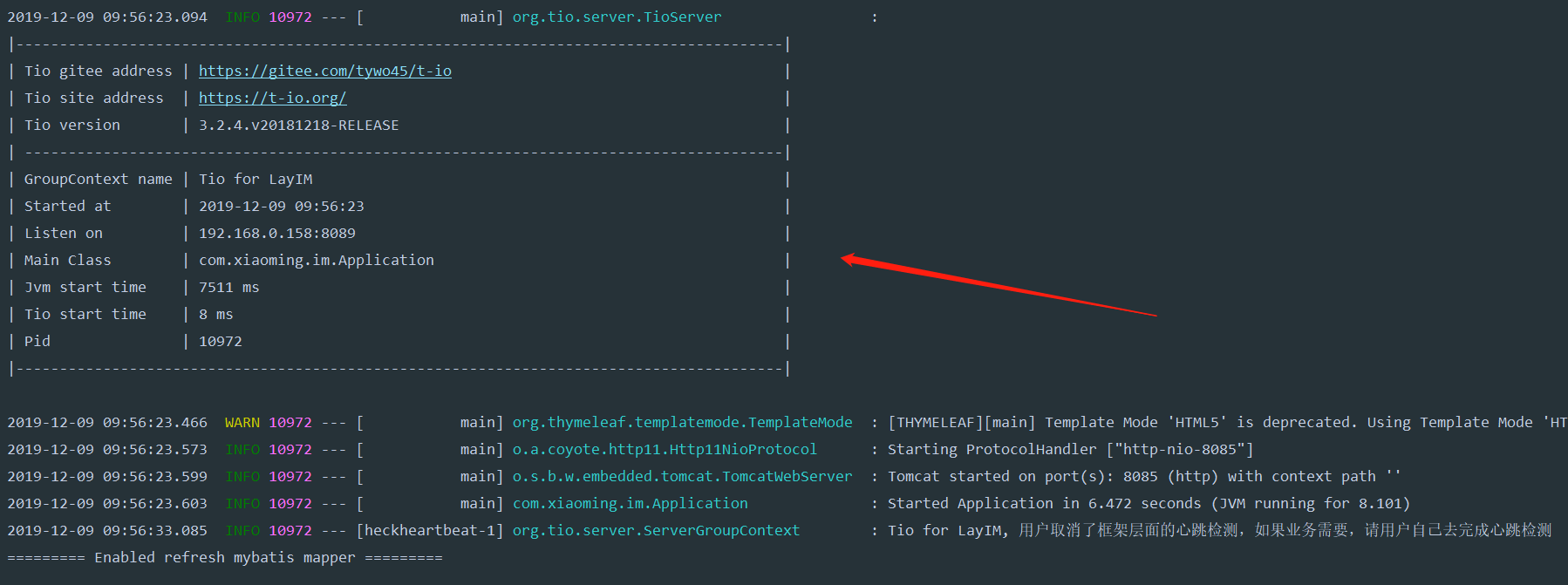

启动项目后出现如下图内容,证明服务端配置成功

由于部分内容待完善,源码暂时无法提供,等功能完善后会提供源码。
此篇内容仅仅只是记录自己在完成该功能的时候的一些过程，以及自己的思路。其中也遇到一些问题，通过网上查找了相关一些资料，如有不对的地方或者待完善的地方，请多多指教。

即时通讯-服务端搭建(一)

前言
